Measurement Method: 400W straighthalogen lamp heating system

with SRA filter and SHS weighingtechnology.

Max Sample Weight Capacity: 51g

Weight Resolution: 0.005g

Moisture Content Display: 0.1%/1%

Moisture Content Accuracy over 1g: 0.5%

(Standard Deviation) over 5g: 0.1%

Heating Technology: Halogen lamp(Straight type, 400 Watt max, 5000 hours)

Drying Temperature 1℃ increment): 50-200

Memory of Measurement Programs: 5 sets

Measurement Programs: StandardMode/Automatic Mode/Quick Mode/Timer Mode/Manual Mode

Measurement Mode: Moisture content(Wetor Dry base) /Dry content/Ratio/Weight

Heating Mode: Standard/Quick

Display Type: Large VFD

Interface: RS-232C standard

Data Memory Function:30

Operating Temperature: 5-40 C (41-104 F)less than 85%RH

GLP/GMP/ISO: Available

Self Check Function: Standard

Sample Pan Size: Ø85mm

Power: AC 100V to 120V (3A) or AC 200Vto 240V (1.5A), 50/60 Hz, Approx. 400W

Physical Dimention/Weight: 215(W) x320(D) x 173(H) / Approx. 6kg

Standard Accessories: Sample Pans (20for MS/MX/MF 10 for ML), Pan Handles (2 for MS/MX/MF, 1 for ML),Tweezers(forMS/MX/MF), Spoon (for MS/MX/MF), Test Sample (30g of Sodium Tartrate Dihydratefor MS/MX/MF), CD-ROM (WinCT-Moisture for MS/MX, WinCT for MF), Glass FiberSheet (for MS/MX/M F), RS-232C Cable (for MS/MX), Display Cover, Dust Cover(forMS/MX/M F), Instruction Manual, Quick Reference Card, Power Cable, Fuse

AKT-809

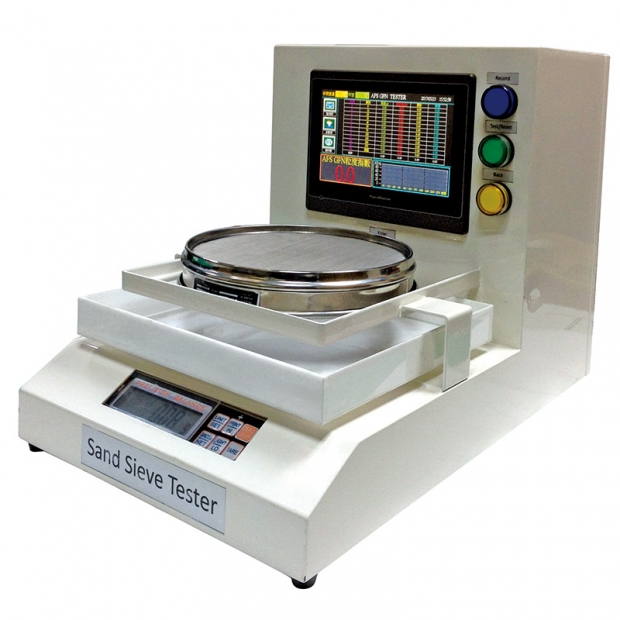

Tube Filter Accessory

◎ Testing top cone (SUS 304#) : Size50.8φ * 120.5mM

◎ Testing sieve: 200mmφ * 40mm * 6#

◎ Size: 30 * 30 * 44 cm

◎ Weight: 5kg

Drying Oven

Model :AKT -810

Dimension     : 950 W x1550 H x750 Dmm

Internal Size  : 600 W x 900 H x 500  mm

Weight           : 20 Kg

Power            : 1/4 HP , 1.5 KW

Temperature  : 200 C ,  Max

Voltage          : AC 220 V

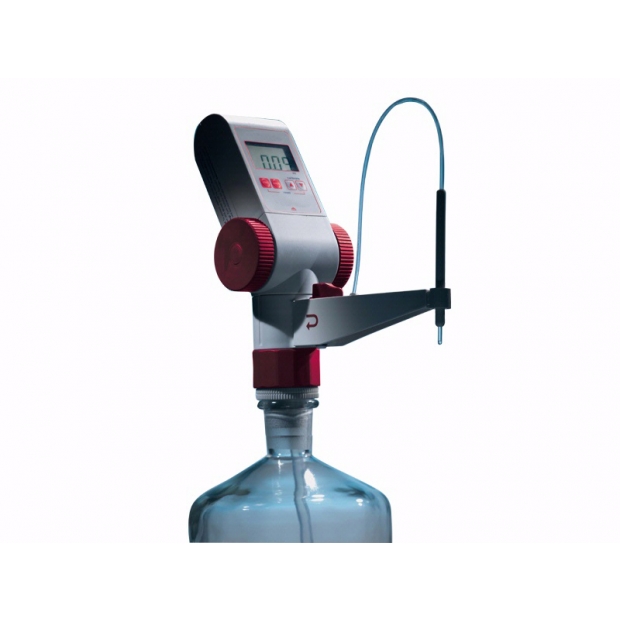

Methylene Blue Clay Tester

Model : AKT -811

Glass Capacity :  50 ml

Minimun Output : 0.1 ml

Tolerance  : less 0.1  % FS

Open Gate Size : 45 mm

Digital Type : 99.99 ml max

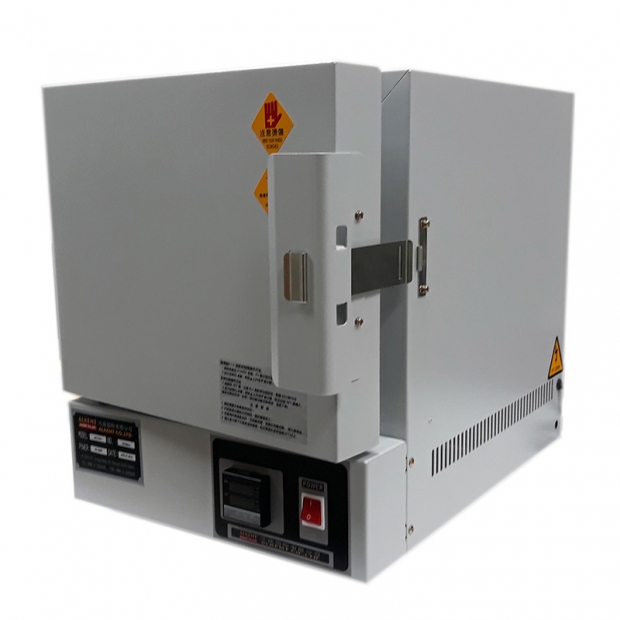

1.Internal size： 15 * 30 * 10 cm
2.size： 40 * 52 * 52 cm
3.AC：220V/16A
4.Temperature：Max ~ 1200℃
5.Capacity：4.5L
6.Control：P. I. D
