Molding Sand Analyzer

AKT-801

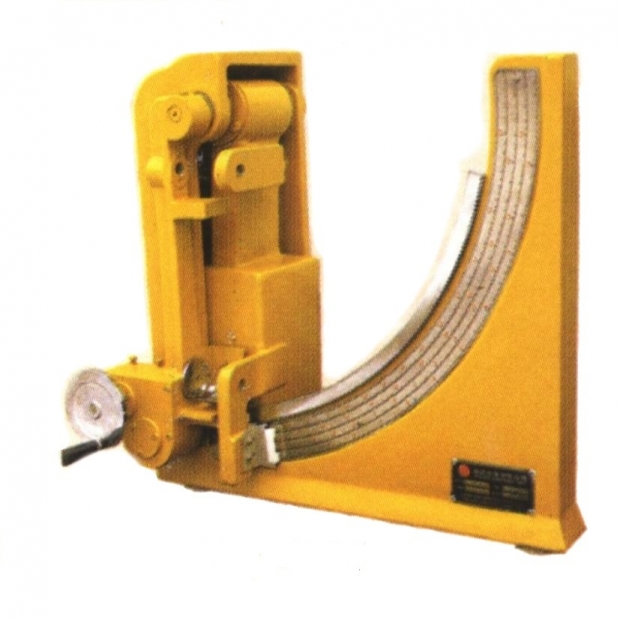

Universal Sand Strength Machine
Testing Range
◎ Green Sand Compression: 1.32 kg/ c㎡
◎ Green Sand Shearing: 1.04 kg/ c㎡
◎ Dry Sand Compression: 6.7 kg/c㎡
◎ Dry Sand Shearing: 5.2 kg/c㎡
◎ Weight: 67kg
◎ Size: 565 * 315 * 540 m/m
◎ Standard Accessories
＊ Compression test part
＊ Magnetized steel indicator
◎ Special Accessories
＊ Compression test part
＊ Shearing test part
＊ Tensile test part


AKT-802

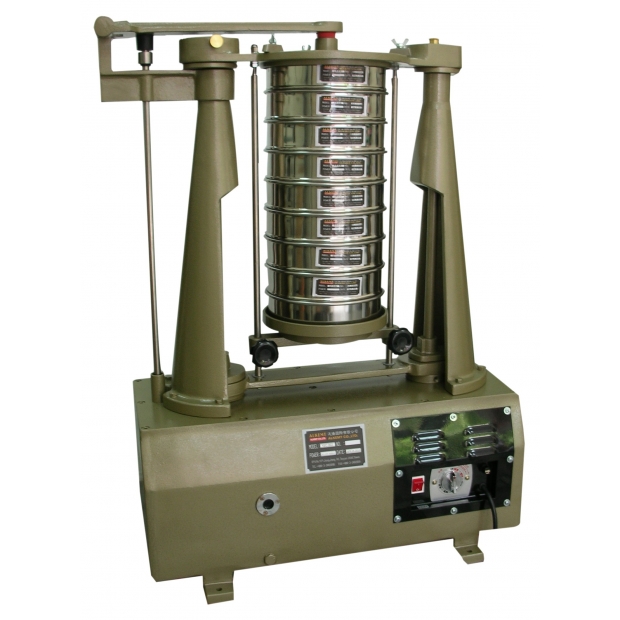

Ro-Tap Sieve Shaker and Test Sieves

◎ AC: 110V * 1φ * 1/4HP

◎ Weight: 170kg

◎ Size: 670 * 320 * 990 m/m

◎ Standard Accessories: 6#、12#、20#、30#、40#、50#、

70#、100#、140#、200#、270#、Sieve*1and Cover Plate*1.

◎ Special Accessories: 8#、10#、14#、28#、35#、48#、65#、150#.

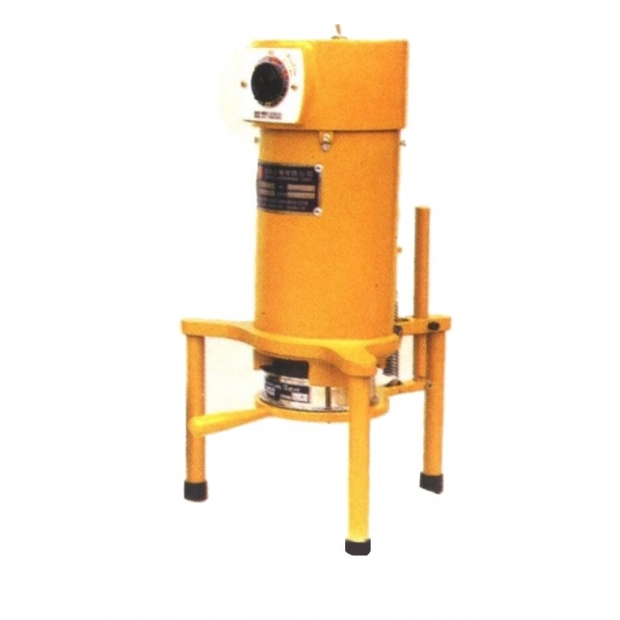

Viberatory Sieve Shaker

Model : AKT -802A

Power  : AC 110 / 220 V , 1/4 HP

Weight : Approx. 20.5 kg

Size     : 300 W x 325 D x 550  H mm

Sieve   :  20#, 30#,40#,50#,70#,100#, 140#, 200 #, 270# , Cover and bottom plate



Characteristics:

1. DeskTop  model

2. Operation easily and noiseless .

3. Timer available 1-60 mins .

4. Viberation works uniformly.

AKT-803

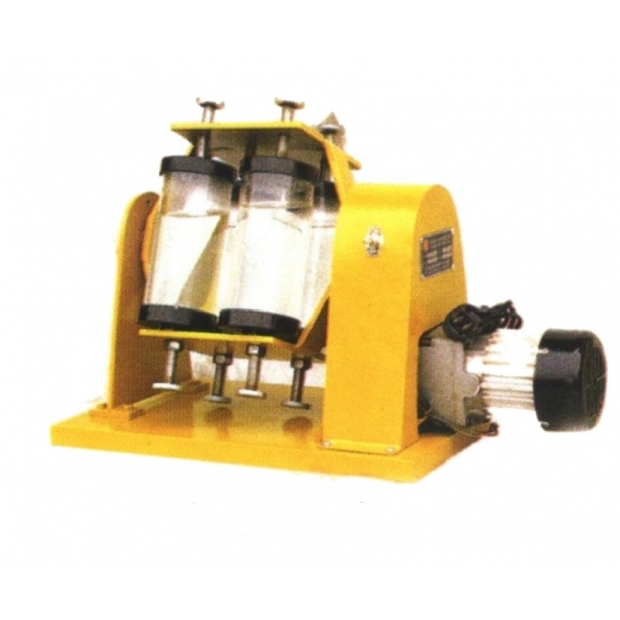

Sand Testing Washer For Bentonite

◎ AC: 220V * 1φ * 1/16HP

◎ Weight: 40kg

◎ Size: 700 * 300 * 385 m/m

◎ Standard Accessories: Sand washingbottle *4.

AKT-805

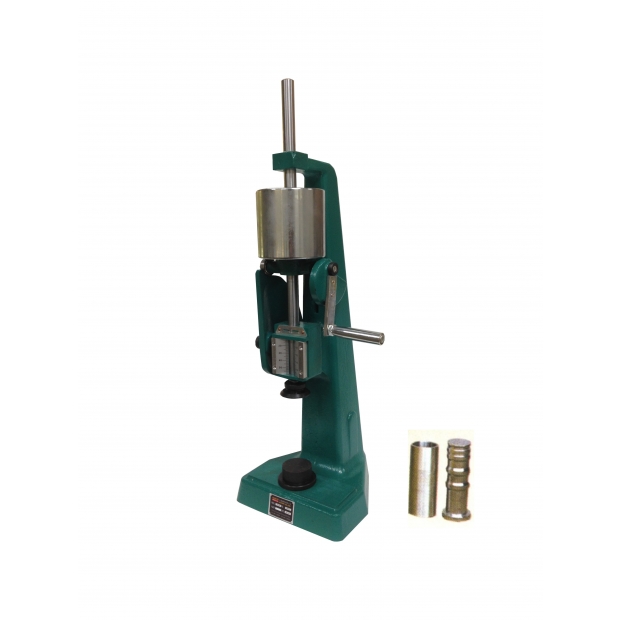

Sand Rammer For Sand Specimen

◎ Weight: 6.5kg ± 0.01kg

◎ Size: 50m/mφ * 50m/m ± 1m/m

◎ Weight: 25kg

◎ Size: 590 * 180 * 260 m/m

◎ Standard Accessories

＊ Sand mold of testing piece

＊ Bottom plate

＊ Punching bar

AKT-806

Moisture Teller

◎ Temperature range: Normaltemperature~200℃

◎ Timer: Max 15 min

◎ AC: 220V * 1φ * 1kw

◎ Weight: 10kg

◎ Size: 390 * 300 * 520 m/m

◎ Standard Accessories: Stainlessplate * 1、Brush * 1.

AKT-807

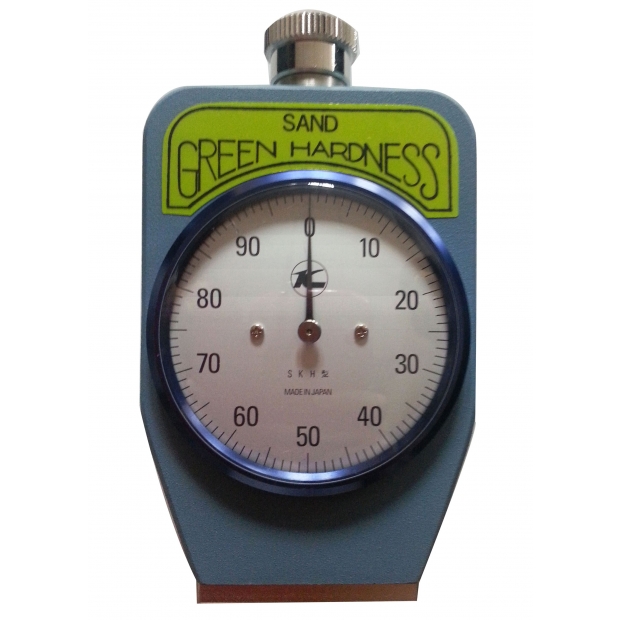

Green Sand Mould Hardness Tester

◎ Model: SKH

◎ Testing range: 0~100°

◎ Visual: 1° (1.3gf)

◎ Tolerance: 4 / 100 max

◎ Ball dimension: 2.54 m/m

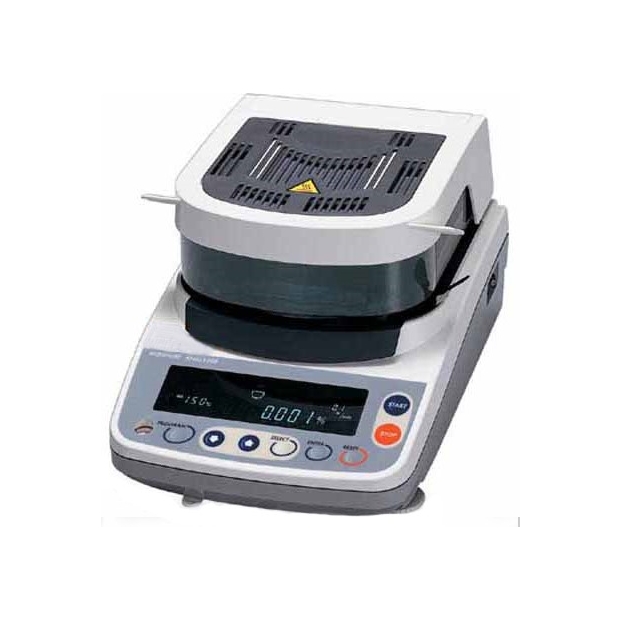

Measurement Method: 400W straighthalogen lamp heating system

with SRA filter and SHS weighingtechnology.

Max Sample Weight Capacity: 51g

Weight Resolution: 0.005g

Moisture Content Display: 0.1%/1%

Moisture Content Accuracy over 1g: 0.5%

(Standard Deviation) over 5g: 0.1%

Heating Technology: Halogen lamp(Straight type, 400 Watt max, 5000 hours)

Drying Temperature 1℃ increment): 50-200

Memory of Measurement Programs: 5 sets

Measurement Programs: StandardMode/Automatic Mode/Quick Mode/Timer Mode/Manual Mode

Measurement Mode: Moisture content(Wetor Dry base) /Dry content/Ratio/Weight

Heating Mode: Standard/Quick

Display Type: Large VFD

Interface: RS-232C standard

Data Memory Function:30

Operating Temperature: 5-40 C (41-104 F)less than 85%RH

GLP/GMP/ISO: Available

Self Check Function: Standard

Sample Pan Size: Ø85mm

Power: AC 100V to 120V (3A) or AC 200Vto 240V (1.5A), 50/60 Hz, Approx. 400W

Physical Dimention/Weight: 215(W) x320(D) x 173(H) / Approx. 6kg

Standard Accessories: Sample Pans (20for MS/MX/MF 10 for ML), Pan Handles (2 for MS/MX/MF, 1 for ML),Tweezers(forMS/MX/MF), Spoon (for MS/MX/MF), Test Sample (30g of Sodium Tartrate Dihydratefor MS/MX/MF), CD-ROM (WinCT-Moisture for MS/MX, WinCT for MF), Glass FiberSheet (for MS/MX/M F), RS-232C Cable (for MS/MX), Display Cover, Dust Cover(forMS/MX/M F), Instruction Manual, Quick Reference Card, Power Cable, Fuse

AKT-809

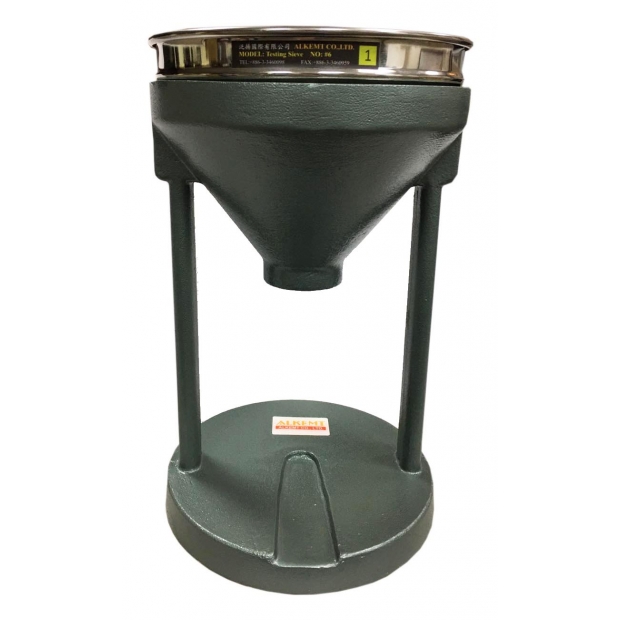

Tube Filter Accessory

◎ Testing top cone (SUS 304#) : Size50.8φ * 120.5mM

◎ Testing sieve: 200mmφ * 40mm * 6#

◎ Size: 30 * 30 * 44 cm

◎ Weight: 5kg

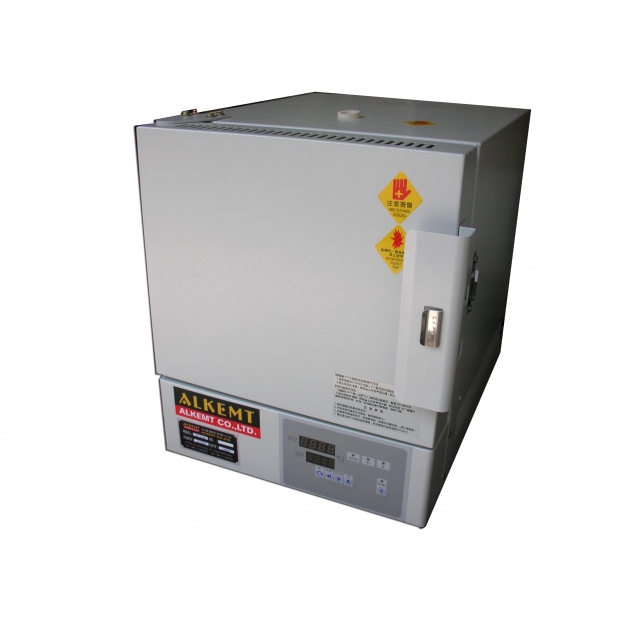

Drying Oven

Model :AKT -810

Dimension     : 950 W x1550 H x750 Dmm

Internal Size  : 600 W x 900 H x 500  mm

Weight           : 20 Kg

Power            : 1/4 HP , 1.5 KW

Temperature  : 200 C ,  Max

Voltage          : AC 220 V
