A. Summary:

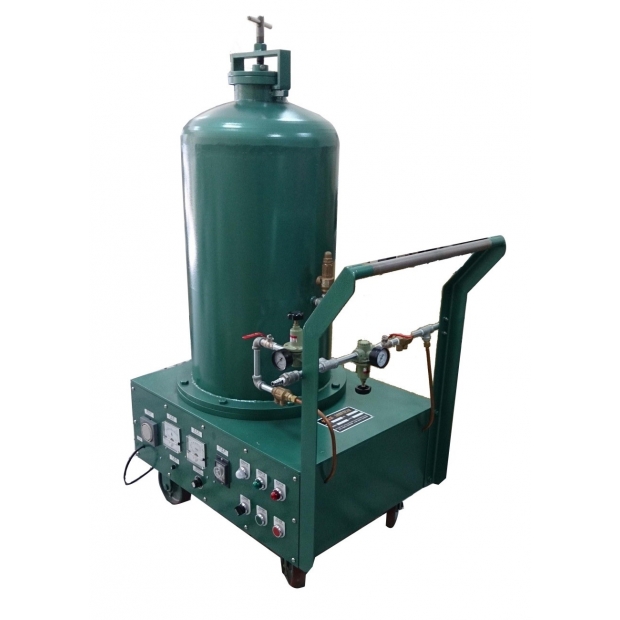

In recent years, for degasification and deslagging, casting industry mostly uses refining agent and dissolving metal for mixing and stirring, but the effect of refining agent has never been exerted 100%, therefore, our company has been researching on this issue and made development: The equipment that can carry out adding and stirring steps with simple and convenient operation to improve its actual effect, this is the “Flux Feeder”. The use of such equipment can not only solve the similar problems mentioned above, but also reduce the usage amount of refining agent; its effect is sufficiently exerted for the improvement of operation environment etc.B. Characteristic and specification:
- Stability of the flow of refining agent, its quantitative difference is within 5%.
- Simple operation, uniform handling, simple and easy for user to learn to operate.
- Simple structure, easy for maintenance, it can be used for a long term with regular inspection and maintenance, besides, it is of corrosion resistance.
- With steel wheel, convenient for move; besides, after confirming the placing location, it’s not easy to be deviated after fixing the steel wheel.
- Specification:
| Storage tank capacity | 60ℓ | |
| Flow of refining agent | ~1,500g/min | |
| Nitrogen | 2~7kg/ , 350N ℓ/min |
|
| Gas (N2) operating pressure | ~1.9kg/ |
|
| Motor | variable speed 60w | |
| Power supply | 50/60Hz ,1φ AC220V | |
| Machinery | Weight | about 170kg |
| Dimension | 800x535x1200 (Length x width x height) mm | |
